MainBrain Hardware Reference
...
| Module | Priority | Sub Priority |
|---|---|---|
| USB | 7 | 3 |
| Port G Change Notice | 7 | 2 |
| Timer 1 | 6 | 3 |
| Timer 2 | 6 | 2 |
| Timer 3 | 6 | 1 |
| Timer 4 | 5 | 3 |
| Timer 5 | 5 | 2 |
| Timer 6 | 5 | 1 |
| RTCC | 4 | 3 |
| I2C Master | 4 | 3 |
| I2C Slave | 4 | 2 |
| INT 0 | 4 | 1 |
| Page Number | Address | Notes |
|---|---|---|
| 0 | 0-3FF | MainBrain Only |
| 1 | 400-7FF | |
| 2 | 800-BFF | |
| 3 | C00-FFF | |
| 4 | 1000-13FF | |
| 5 | 1400-17FF | |
| 6 | 1800-1BFF | |
| 7 | 1C00-1FFF |

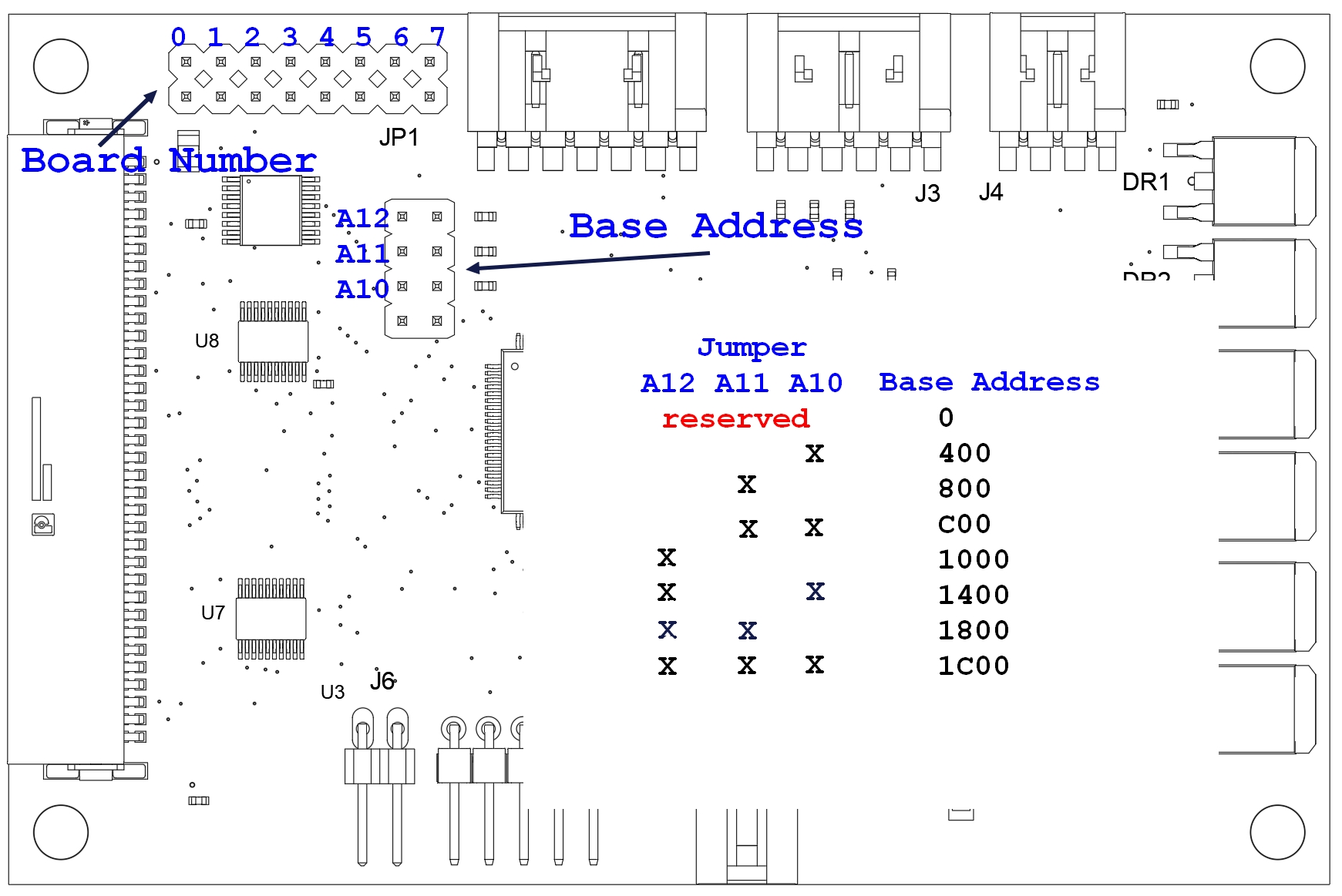

Peripheral Boards Jumper Settings
